OnePlus Ace 5 Pro

Category

Details

Network Technology

GSM / CDMA / HSPA / LTE / 5G

Launch

Announced: 2024, December 26 • Released: 2024, December 31

Body Dimensions

161.7 × 75.8 × 8.1 mm (6.37 × 2.98 × 0.32 in)

Weight

203 g / 217 g (7.16 oz)

Build

Glass front (Crystal Shield Glass), glass back (Crystal Shield Glass), aluminum frame

SIM

Dual Nano-SIM

Water/Dust Resistance

IP65 dust tight and water resistant (low-pressure water jets)

Display Type

LTPO AMOLED, 1B colors, 120Hz, HDR10+, Dolby Vision, 800 nits (typ), 1600 nits (HBM), 4500 nits (peak)

Display Size

6.78 inches (~91.2% screen-to-body ratio)

Display Resolution

1264 × 2780 pixels (~450 ppi density)

Display Protection

Crystal Shield Glass

Operating System

Android 15, ColorOS 15

Chipset

Qualcomm Snapdragon 8 Elite (3 nm, SM8750-AB)

CPU

Octa-core (2×4.32 GHz Oryon V2 Phoenix L & 6×3.53 GHz Oryon V2 Phoenix M)

GPU

Adreno 830

Card Slot

No

Internal Storage & RAM

256GB 12GB RAM / 256GB 16GB RAM / 512GB 12GB RAM / 512GB 16GB RAM / 1TB 16GB RAM (UFS 4.0)

Main Camera

Triple: 50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS • 8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm • 2 MP (macro)

Camera Features

Color spectrum sensor, Dual-LED flash, HDR, panorama

Main Camera Video

4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS

Selfie Camera

16 MP, f/2.4, 24mm (wide), 1/3", 1.0µm

Selfie Features

HDR, panorama

Selfie Video

1080p@30fps, gyro-EIS

Loudspeaker

Yes, with stereo speakers

3.5mm Jack

No

WLAN

Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band

Bluetooth

5.4, A2DP, LE, aptX HD, LHDC 5

Positioning

GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5)

NFC

Yes

Infrared Port

Yes

Radio

No

USB

USB Type-C 2.0

Sensors

Fingerprint (under display, optical), accelerometer, gyro, proximity, compass

Battery Type

Si/C Li-Ion 6100 mAh (non-removable)

Charging Speed

100W wired • 33W PPS • 18W PD/QC • 55% in 15 min • 100% in 35 min

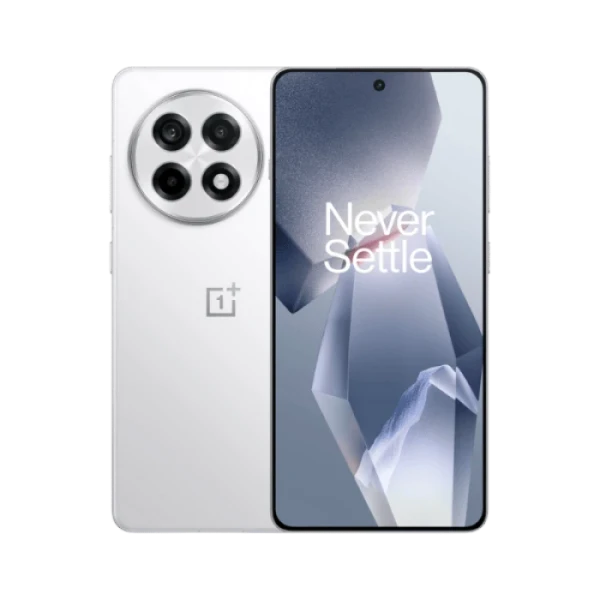

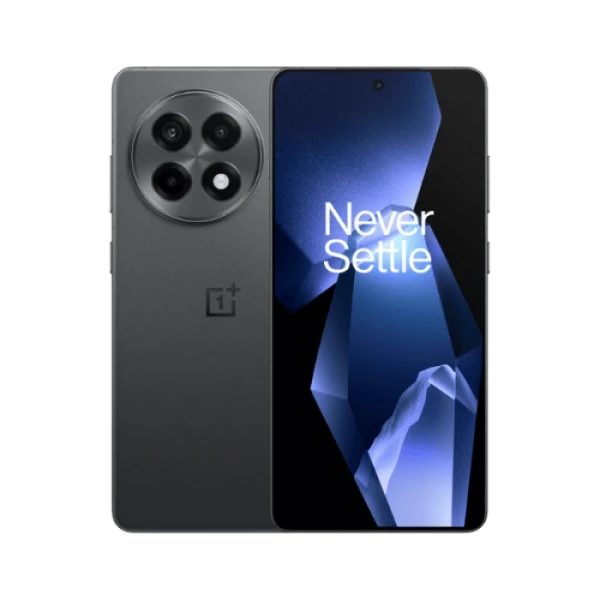

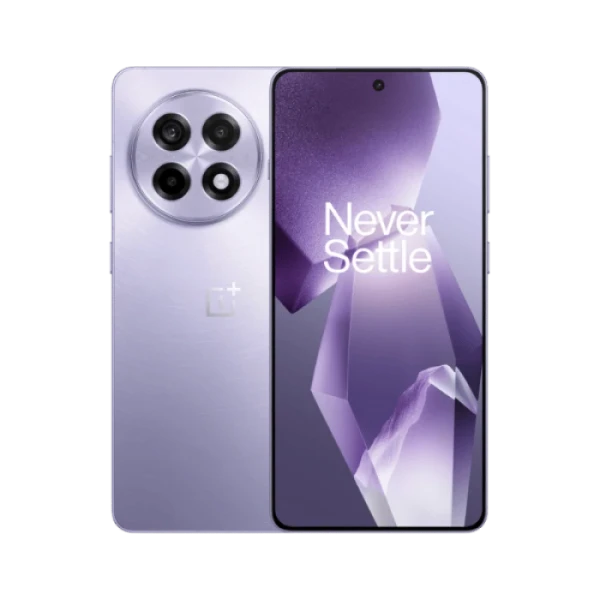

Colors

Gray, White, Purple

Model

PKR110
