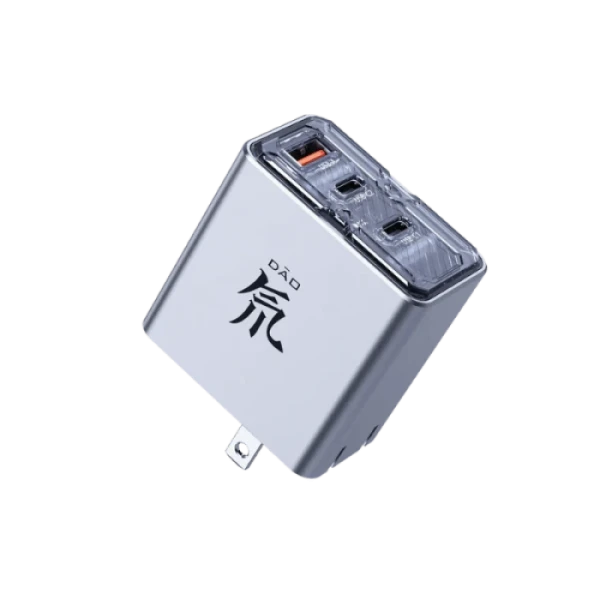

REDMAGIC 80W 3-Port GaN Fast Charger

Category

Details

Model

PA0214E / PA0214D

Material

Polycarbonate

Dimensions (Approx.)

51 × 30 × 53.3 mm

Weight (Approx.)

~125 g

Input

100-240 V ~ 50/60Hz, 1.5A Max

Output – USB-C1/USB-C2

5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-4A, 5-11V-5A, 5-20V-4A – Max 80W

Output – USB-A

10V-2.25A / 5V-3A / 9V-2A / 12V-1.66A – Max 22.5W

Combined Output Scenarios

USB-C1 + USB-C2: up to 65W USB-C1 + USB-A: up to 63W USB-C2 + USB-A: ~15W USB-C1 + USB-C2 + USB-A: up to ~60W

Total Maximum Output Power

80W

Ports

2 × USB-C + 1 × USB-A

Included Accessory

100W data cable

Technology

GaN (Gallium Nitride) chips, NeoCharger 3.0 dynamic distribution

Key Features

Transparent-tech design, ultra-compact size, supports multiple fast-charging protocols (PD/QC/SCP/FCP/AFC/Apple), intelligent temperature/charge control, multi-device simultaneous charging

Safety Protections

Input over-voltage, output over-current, over-temperature, short circuit protection, automatic slow/overnight charging mode
